iSLC technology
Built-in Pin 8 power supply
Best boot drive solution for server and embedded system
SATA 6Gb/s interface
High IOPS to reduce boot up timing
DRAM-less, 100% data integrity
Innovative Firmware Algorithm
Anti-vibration mechanical design
Built in iData Guard

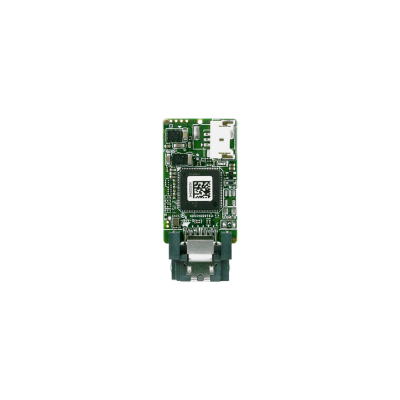

| Module Name | SATADOM-SV 3IE3 V2 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | iSLC |
| Type | Vertical |
| Capacity | 8GB~64GB |
| Sequential R/W (MB/sec, max.) | 240/160 |
| Max. Power Consumption | 1.13W (5V x 227mA ) |
| Max. Channels | 2 |
| Thermal Sensor | Wide Temp. only |
| ATA Security | Y |
| H/W Write Protect | Y |
| Pin 7 Power | Y |
| Pin 8 Power | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 18.0 x 39.2 x 7.56 |
| MTBF | >3 million hours |
| Shock | 1500G@0.5ms |
| Vibration | 20G@7~2000Hz |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 8GB | 16GB | 32GB | 64GB |
|
Standard Grade (0°C ~ +70°C) |
DHSSV-08GD09BC1SCA DHSSV-08GD09BC1SCB |
DHSSV-16GD09BC1SCA DHSSV-16GD09BC1SCB |
DHSSV-32GD09BC1SCA DHSSV-32GD09BC1SCB |
DHSSV-64GD09BCADCA DHSSV-64GD09BCADCB |
|
Industrial Grade (-40°C ~ +85°C) |
DHSSV-08GD09BW1SCA DHSSV-08GD09BW1SCB |
DHSSV-16GD09BW1SCA DHSSV-16GD09BW1SCB |
DHSSV-32GD09BW1SCA DHSSV-32GD09BW1SCB |
DHSSV-64GD09BWADCA DHSSV-64GD09BWADCB |
