iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Write protection security
Enhanced power cycling management

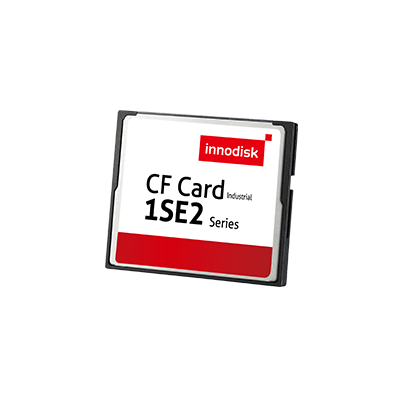

| Module Name | iCF 1SE2 |
| Interface | PATA |
| Flash Type | SLC |
| Capacity | 512MB~64GB |
| Sequential R/W (MB/sec, max.) | 85/70 |
| Max. Power Consumption | 1.4W(5.0V x 280mA) |
| Max. Channels | 2 |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.3 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 512MB | 1GB | 2GB | 4GB | 8GB | 16GB | 32GB | 64GB |
|
Standard Grade (0°C ~ +70°C)
|
DECFC-512D53AC1SB | DECFC-01GD53AC#%B | DECFC-02GD53AC#%B | DECFC-04GD53AC#%B | DECFC-08GD53AC2DB | DECFC-16GD53AC2DB | DECFC-32GD53AC2DB | DECFC-64GD53AC2DB |
|
Industrial Grade (-40°C ~ +85°C) |
DECFC-512D53AW1SB | DECFC-01GD53AW#%B | DECFC-02GD53AW#%B | DECFC-04GD53AW#%B | DECFC-08GD53AW2DB | DECFC-16GD53AW2DB | DECFC-32GD53AW2DB | DECFC-64GD53AW2DB |
